If you’re in the market for system scaffolding, you’ve likely come across two of the most widely used options: Ringlock and Cuplock scaffolding. While both are modular systems designed for speed, safety, and strength, they differ in structure, assembly method, flexibility, and ideal applications.
In this guide, we’ll break down the key differences between Ringlock and Cuplock scaffolding, helping you choose the right system for your next project.
1. What Is Ringlock Scaffolding?
Ringlock scaffolding is a rosette-based system where vertical standards have circular discs (called rosettes) welded at fixed intervals. Horizontal ledgers and diagonal braces connect to the rosette with a wedge head mechanism.
🔩 Key Features:
- Up to 8 connections per rosette
- Tool-free assembly
- High flexibility for complex geometries
- Available in steel and aluminum versions
2. What Is Cuplock Scaffolding?

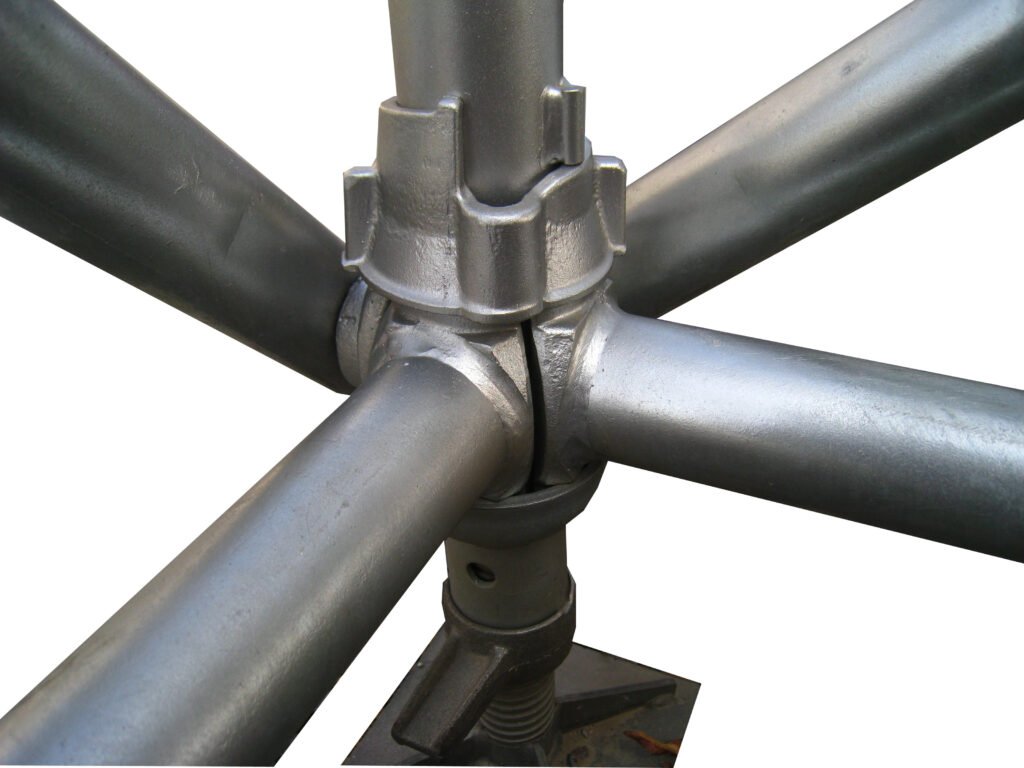

Cuplock scaffolding uses a cup-and-blade locking mechanism. Vertical standards have fixed bottom cups and sliding top cups. Horizontal members (ledgers) have forged blade ends that slot into the cups and are locked by rotating the top cup.
🔧 Key Features:
- 4 connections per joint
- Simple and robust locking system
- Heavy-duty performance
- Popular for repetitive layouts
3. Key Differences at a Glance
| Feature | Ringlock Scaffolding | Cuplock Scaffolding |
|---|---|---|
| Connection Type | Rosette & Wedge | Cup & Blade |
| Flexibility | ★★★★★ – Ideal for irregular shapes | ★★★☆☆ – Best for straight, uniform setups |
| Assembly Speed | ★★★★★ – Fast and intuitive | ★★★★☆ – Fast but less versatile |
| Number of Connections | Up to 8 at a single rosette | 4 at each cup joint |
| Load Capacity | Very High | High |
| Material Options | Steel or Aluminum | Mainly Steel |
| Typical Applications | Complex projects: power plants, bridges | Standard building construction |
| Initial Cost | Higher | Lower |
4. When Should You Use Ringlock?
Ringlock scaffolding is perfect for:
- Complex structures with curves, angles, or varying levels
- Infrastructure like bridges, tunnels, and offshore rigs
- Projects that demand frequent adjustments and custom configurations
Its advanced design and 8-way connectivity give you freedom to build almost any shape, height, or layout—quickly and securely.
5. When Should You Use Cuplock?
Cuplock scaffolding is best for:
- Straight vertical structures like high-rises
- Repetitive grid layouts
- Construction projects with tight budgets but no special geometry
It’s simple, strong, and cost-effective—especially for contractors who value standardization over customization.
6. Which System Is Easier to Use?
Both systems are relatively easy to assemble, but Ringlock has the edge in terms of speed and flexibility. With its wedge-locking mechanism, you don’t need to rotate or align parts—just insert and hammer.
Cuplock, while still efficient, requires more alignment at each node and supports fewer connections per joint.
7. BM Scaffolding: Your Source for Both Systems
At BM Scaffolding, we manufacture and supply both Ringlock and Cuplock scaffolding systems, offering:
- Hot-dip galvanized steel for corrosion resistance
- High-precision welding
- Compatibility with global standards like EN, ANSI, and OSHA
- Custom packaging and fast delivery worldwide
Not sure which to choose? Our team will assess your project needs and recommend the best system for safety, cost, and performance.
8. Conclusion: Ringlock or Cuplock?
- Choose Ringlock if your project is complex, irregular, or needs fast and flexible assembly.
- Choose Cuplock if you’re building straight, repetitive structures and want a robust, budget-friendly system.
Both are excellent solutions—your decision depends on the project type, budget, and site complexity.
Let BM Scaffolding be your trusted partner for high-performance scaffolding solutions.
9. Engineering Insight: Node Strength & Load Transfer Efficiency
From an engineering perspective, the design of the connection point greatly impacts the scaffolding system’s ability to handle dynamic and concentrated loads.
- Ringlock scaffolding, with its rosette (ring) node, allows up to 8 connections per joint. This enables multi-directional force distribution and higher node rigidity. It is especially suitable for complex structures requiring enhanced load-bearing capacity, such as bridges, boiler plants, and shipyards.
- Cuplock scaffolding, on the other hand, offers 4-directional connections. While robust for standard structures, its limited node geometry makes it less efficient under asymmetrical loads or torsion forces.
📐 Key technical terms: node rigidity, moment resistance, axial load transfer.
10. Assembly Speed: Time and Labor Comparison
A practical factor in scaffolding selection is how quickly it can be assembled and dismantled on-site. Here’s a general performance comparison:
| System | Avg. Assembly Time (Per 100 m²) | Labor Required |
|---|---|---|
| Ringlock | 20–30 minutes | 2–3 workers |
| Cuplock | 30–45 minutes | 2–3 workers |
Because of its wedge-head and gravity-assisted locking design, Ringlock is generally faster, especially on complex sites or irregular surfaces.
11. Lifecycle & Maintenance Cost Comparison
While Cuplock scaffolding has a lower initial purchase cost, Ringlock proves more cost-effective in the long run due to its higher durability and lower maintenance demand.
- Ringlock systems, typically hot-dip galvanized and precision-welded, can last over 10–15 years in harsh environments, making them ideal for long-term use or rental businesses.
- Cuplock may require more frequent inspection and replacement of locking cups due to wear, especially in high-use cycles.
📊 Pro insight: The Total Cost of Ownership (TCO) is often lower for Ringlock in multi-project or rental applications.
12. Safety Features in High-Risk Environments
Safety is a non-negotiable factor in scaffolding selection. Ringlock scaffolding offers a superior safety configuration due to its advanced modularity.
- Ringlock supports easy integration of toe boards, inside handrails, mesh guards, ladder beams, and stair towers, allowing quick creation of fully enclosed platforms.
- Cuplock, while solid, is less adaptable in tight spaces or when full edge protection is required. Safety accessories often need to be customized or attached separately.
🧠 Professional note: Ringlock enables safer operations in confined, high-rise, and wind-prone sites due to its high modular compatibility.
13. Global Market Trends & Regional Usage Preferences
Understanding market preference and compliance standards adds a new level of professionalism when recommending scaffolding systems.
| Region | Preferred System | Reason |
|---|---|---|
| Europe | Ringlock | EN12810/EN12811 standard compliance |
| Middle East | Cuplock | Simpler job sites, lower-cost labor |
| Southeast Asia | Mix (Cuplock + Ringlock) | Depends on job complexity & contractor preference |
| South America | Ringlock | Export quality, versatility, and safety features |
| Australia | Kwikstage | (Alternative system commonly used in the region) |
🌍 Industry Insight: Compliance, workforce skills, and project complexity all influence scaffolding system choices globally.
Still unsure which system suits your project best?
At BM Scaffolding, we provide free technical support based on your project drawings, load specifications, and construction environment. We don’t just sell scaffolding—we build long-term trust and safety into every solution.
